Septic Tank Design
A septic tank is
a wastewater refining system. It is need for safe our environment. So must
be septic tank design by engineer. Below I present septic tank
drawing details with in autocad dwg file.

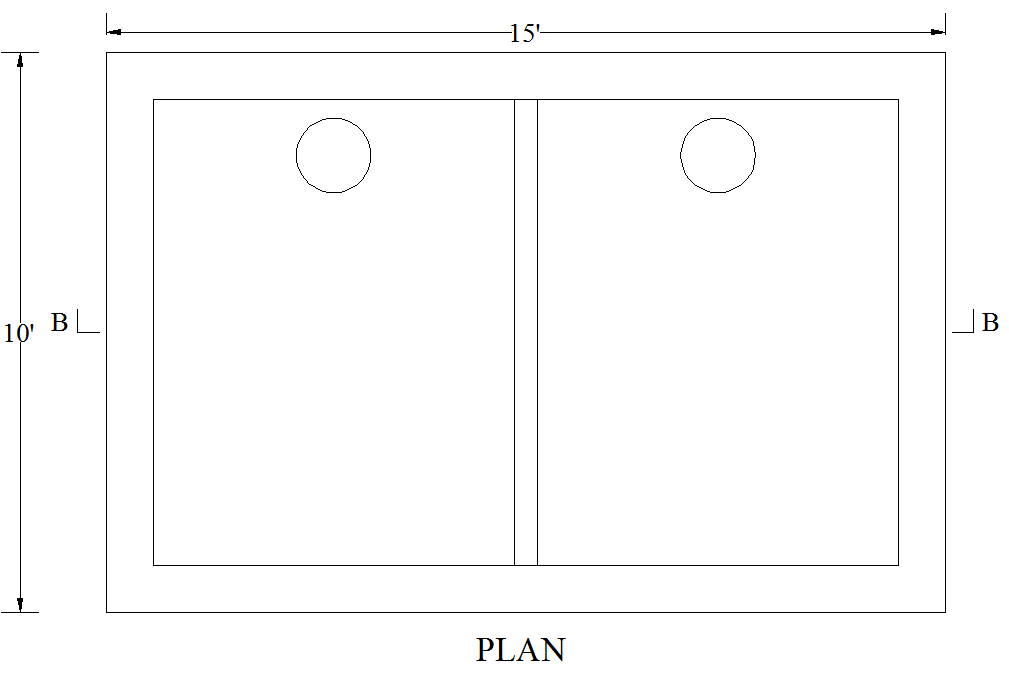

Septic Tank
Drawing with
15'x10'. How to two chamber septic tank design with in
autocad file.
Septic tank
section on B-B. Septic tank height 7' and tow chamber tank. Inlet and outlet
pipe diameter 6 inch.
Slab detail of
septic tank. Slab main reinforcement
will use 12 mm 𝞥 @ 6" c/c bottom and top bar.
This post is
complete septic tank design to ready for construction work. It is so simple for
design. below attach in this autocad dwg file. This dwg file to many describe
with in this structure. And get ready septic tank for construction site. This
file has three drawing for Septic tank.
Water Tank Design
How many area in
a house or office water tank fully depended this number of people at house or
office. Water Tank design do carefully for this thickness
and mortar ratio. Because water tank will be leakage.
This is a Water tank plan 15'x10'.
This is a Water tank plan 15'x10'.
This is a
Section on A-A. Complete the construction for house water reserve. This
is free download autocad dwg file below.
