Any building project developed
on land, therefor land purchasing is the main motto of any builder. This land
is legally purchased by looking some criteria like survey no. of the land. Survey
number is in one plot or plot had multiple
survey number, the land survey number can be checked by actual site visiting. The
map of land is checked according to the village map or not. Power of attorney is
legally on stamp paper is an important point to look out. The title clearance certificate
from the advocates. Boundary marking
should be done by using stones fixed in concrete on every turning/corner points
after specific distances. These stone painted by red oil paint. During this
initial marking process, reference points should be marked like tree, nalla,
road etc.
Calculation of Land/Plot -
Area of ABCD = 4 x Area of
Triangle
Every Triangle Area Calculated
by Two Types
1. Area of
ABCD =
(AB x ½
H4) + (BC x ½ H3) + (CD x ½ H2) + (AD X ½ H1)

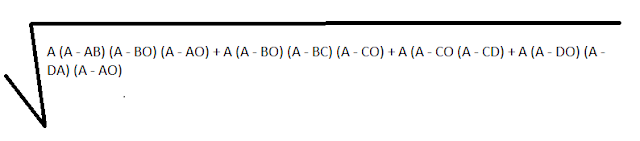

2. Area of
ABCD =
WHERE A = TRIANGLE AREA ADDED
By drawing the layout plan the
architect need following details -
Contour plan
Trial pit information about
land.
